10/100/1000M Gigabit SFP LC Fiber To Copper Media Converter Grey Rack Mounted
Product Overview
Features
Full duplex-flow control, Half duplex-back pressure
Auto-MDI/MDIX Rj45 Ethernet port, 10/100/1000 auto-sensing
Specification
| Standard |
IEEE802.3 (10BASE-T), IEEE802.3u 100BASE-TX/FX (Fast-Ethernet), IEE802.3z 1000BASE- -SX/LX(Gigabit-Ethernet), IEEE802.3x (Flow Control), IEEE802.1q, IEEE802.1p QoS, IEEE802.1d Spanning Tree, IEEE1588V2, IEEE802.3az |
| 10/100/1000BASE-T | STP or UTP Category 5/5e/6 cable (Max. 100m) |
| SFP | SX, LX, EX, ZX, EZX, and Bi-Di optical transceivers are available |
| Conversion Mode / Delay Time | Store-and-Forward < 10us, straight-through<0.9us |
| Flow control | Full duplex-flow control, Half duplex-back pressure |
| RJ-45 Port | Auto-MDI/MDIX |
| Fiber Connector | LC (duplex), LC/SC(simplex) |
| Wavelength | 1310/1550nm |
| Input Voltage | DC 5V1A with External power adapter |
| Power Consumption | <2.5W |
| MTBF | 50,000 hours |
| BER | <1/1000000000 |
| Operating Temperature | 0℃~50℃ |
| Storage Temperature | -40℃~70℃ |
| Storage Humidity | 5%~90% non-condescending |
| Weight | Net weight : 0.18kg, Gross weight : 0.44kg |
Ordering Information
| TA343-GE/LXX | 10/100/1000M media converter, with SFP slot but without SFP, standalone, premium casing, external PSU |
| TA343/2-GE/LC-SX | 10/100/1000M, MM, Single fiber, 5km, with SFP,LC, 1310/1550nm, standalone, premium casing, external PSU |
| TA343/2-GE/SC-20 | 10/100/1000M, SM, Single fiber, 20km, with SFP,LC, 1310/1550nm, standalone, premium casing, external PSU |
| TA343/2-GE/SC-40 | 10/100/1000M, SM, Single fiber, 40km,withSFP,LC, 1310/1550nm, standalone, premium casing, external PSU |
| TA343/2-GE/SC-60 | 10/100/1000M, SM, Single fiber, 60km, with SFP,LC, 1310/1550nm, standalone, premium casing, external PSU |
| TA343-GE/LC-05 | 10/100/1000M, MM, Dual fiber, 5km, with SFP,LC, 1310nm, standalone, premium casing, external PSU |
| TA343-GE/SC-20 | 10/100/1000M, SM, Dual fiber, 20km, with SFP,LC, 1310nm, standalone, premium casing, external PSU |
| TA343-GE/SC-40 | 10/100/1000M, SM, Dual fiber, 40km,with SFP,LC, 1310nm, standalone, premium casing, external PSU |
| TA343-GE/SC-60 | 10/100/1000M, SM, Dual fiber, 60km,with SFP,LC, 1550nm, standalone, premium casing, external PSU |
Above are most frequently ordered items. Please let me know for other requirements.

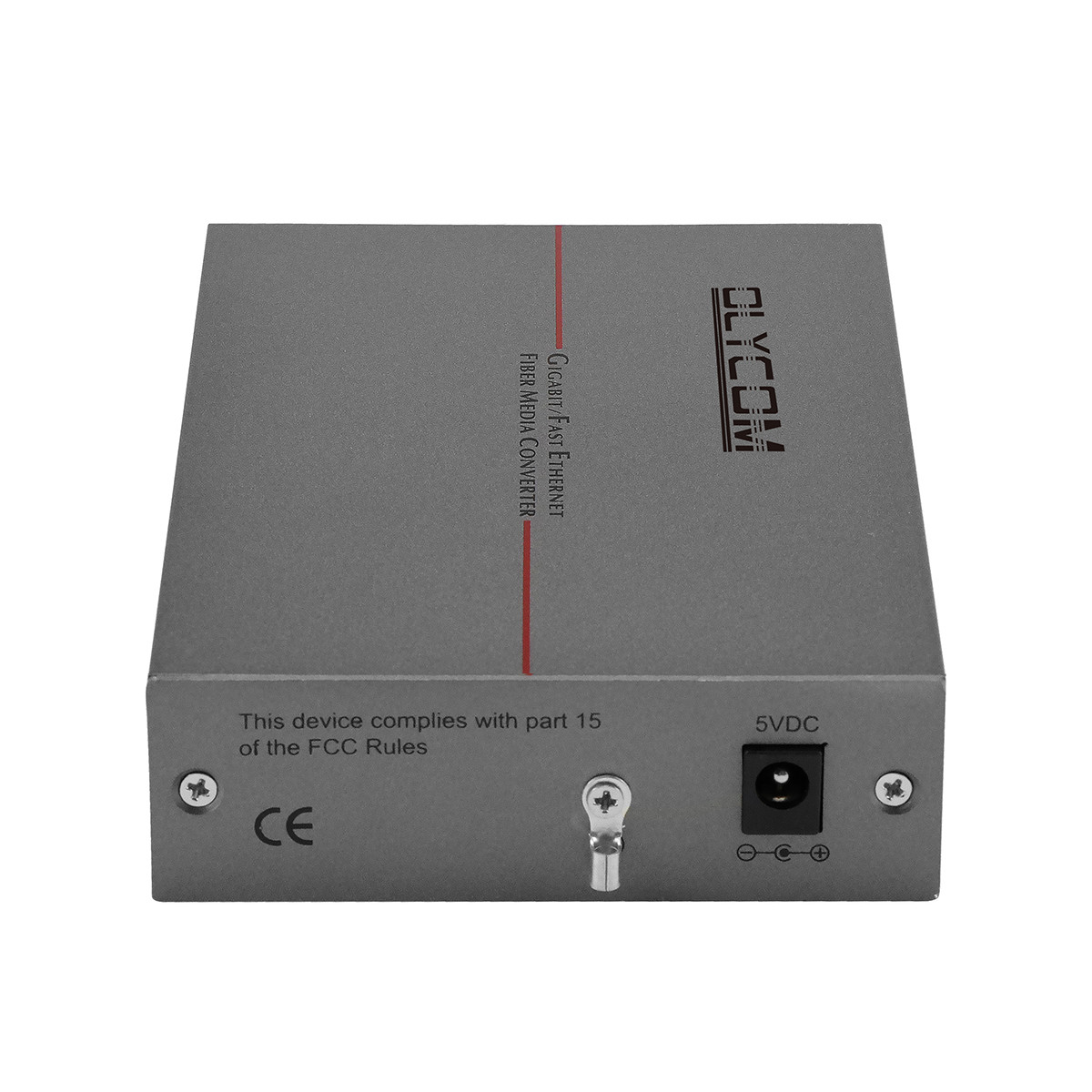

Product Images
