1080P 2MP AHD CVI TVI CVBS 4ch Video+1ch Data RS485 Video To Fiber Converter
Model: OM615-4V↑1D↓WT/R, we support your model
Product Overview

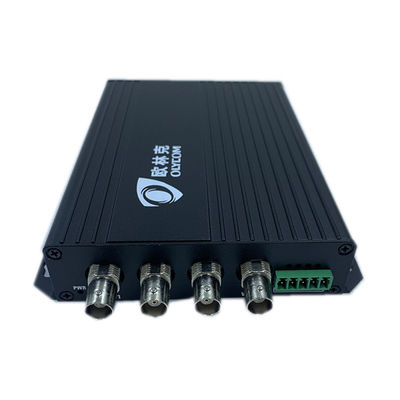

OM615-4V↑1D↓WT/R AHD/TVI/CVI optical video transmitter and receiver transmits 4ch AHD/HDTVI/HDCVI video signals and 1ch RS485 data on optical fiber.
It is designed to transmit AHD/HDTVI/HDCVI high-definition composite video for long-distance. 720P, 960P, 1080P and other video signals are adaptive.
It achieves high-definition video transmission without delay and compression, with high reliability. Data, contact closure, audio and other signals are optional.
Key Features
Robust metal casing
Lightning-proof solution
Low optical link loss – max 30dB
Without EMI, RFI and ground loop
Bi-di transmission on 1 fiber with WDM
Hot plug-and-play with switch power supply
Available in standalone and 3U rack systems
Specification
|
Optical
|
|
|
Wavelength |
1310nm/1550nm |
|
Output Power |
-8~3dBm |
|
Optic fiber |
Single mode:20Km/40km, multimode:550m |
|
Receiving sensitivity |
30dBm |
|
Interface |
FC standard, ST/SC optional |
|
Video |
|
|
Channel Quantity |
4ch, from camera to control center |
|
Video Input /Output Amplitude |
typical 1Vpp (peak-to-peak), peak 1.2Vpp |
|
Video Input Impedance |
BNC 75Ω (unbalanced) |
|
BNC 75Ω (unbalanced) |
64MHZ |
|
Digital Bandwidth |
512MHZ |
|
Differential Gain Phase |
10%-90% APL DG<1% (typical) |
|
Video Bit Width |
8 bit |
|
S/N ratio |
>70dB |
|
Interface |
BNC |
|
RS485 Data |
|
|
Channel Quantity |
1ch, from control room to camera |
|
Data Rate |
115Kbps |
|
Electrical. Environmental. Mechanical |
|
|
Operating voltage |
DC 5V1A |
|
Operating temperature |
-20℃～+70℃ |
|
Storage temperature |
-45℃～+85℃ |
|
Weight |
0.40kg/piece (Net Weight), 1.26 kg/pair (Gross Weight) |
|
Dimension-standalone |
179mm ×128.5mm ×28.5mm |
Application
Express way security protection and toll station system
City traffic monitoring system
Building and campus monitoring system
Industrial monitoring (airport, chemical plant, railway, etc.)
Military monitoring (frontier defense, national defense)
Electronic power oil field, TV station program broadcasting
Gymnasium (live video and audio transmission)
|
OM615-4V↑1D↓WT/R-FC20 |
4ch video Tx, 1ch RS485 data Rx, singlemode, single fiber, 20Km, FC |
|
OM615-4V↑1D↓MT/R-FC5 |
4ch video Tx, 1ch RS485 data Rx, multi-mode, single fiber, 0.5Km, FC |
